Study Case Analysis

Researchers study human body movement and form to create a space. Analysis of activities that humans can do in the playground, and also my designs are to learn children's movement in the playground such as some play tools. The scale depends on each kid playing each game/play tool, the average height is around 90cm-130cm for kids. Then for the placement, we choose the Indoor & Outdoor placement points for the Playground site with a size scale of 1/3 on the Landscape Base. The reason for placing it is that it must cover all accessible areas in the landscape, be it in the middle of an empty field or between other buildings and inside the building. Also for our building, we will use the prototype that includes 4 types of playground gamestoolsl: Monkey bar, Swingers, Seesaw, and Slider.

The Point of View From A Childrens

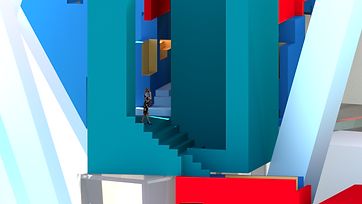

Inside Building View

5F Roofless View

The Highest View

Connector part one prototype to another prototype building (Green Part)




Indoor & Outdoor placement point Playground site ( Green Point )

The reason for placing it is because it must cover all accessible areas in the landscape, can be it in the middle of an empty field or between other buildings and also can be inside the building.

對基地分析

Connect every point exist and also make the outline building ( Green Part ) till the size is around 1/3 on Landscape Base.  Then change the outline building to our prototype that include 4 types of playground games : Monkey bar, Swingers, Seesaw, and Slider (for this part the Scale is 1:100).

And some Prototype have different connector, we use green color to represent the Connector.

AA'

BB'

CC'

DD'

平面圖

配置圖

剖面圖

局部放大圖
